Dune House

The clearly identifiable concept was for a dark top hat to be seated on a perimeter-glass ground floor storey. This naturally informed the structural response, which was devised with a set-back concrete core and first floor slab supporting a CLT first floor and roof structure. Slender steel sections hidden behind the façade helped to support the slab edge and limit deflections and a finite element analysis assisted in thinning the 9m spanning first floor slab to 250mm, reducing load and material costs. A raft foundation bears directly on the sand.

Structural engineering by Jane Wernick Associates, now part of engineersHRW.

2064 original

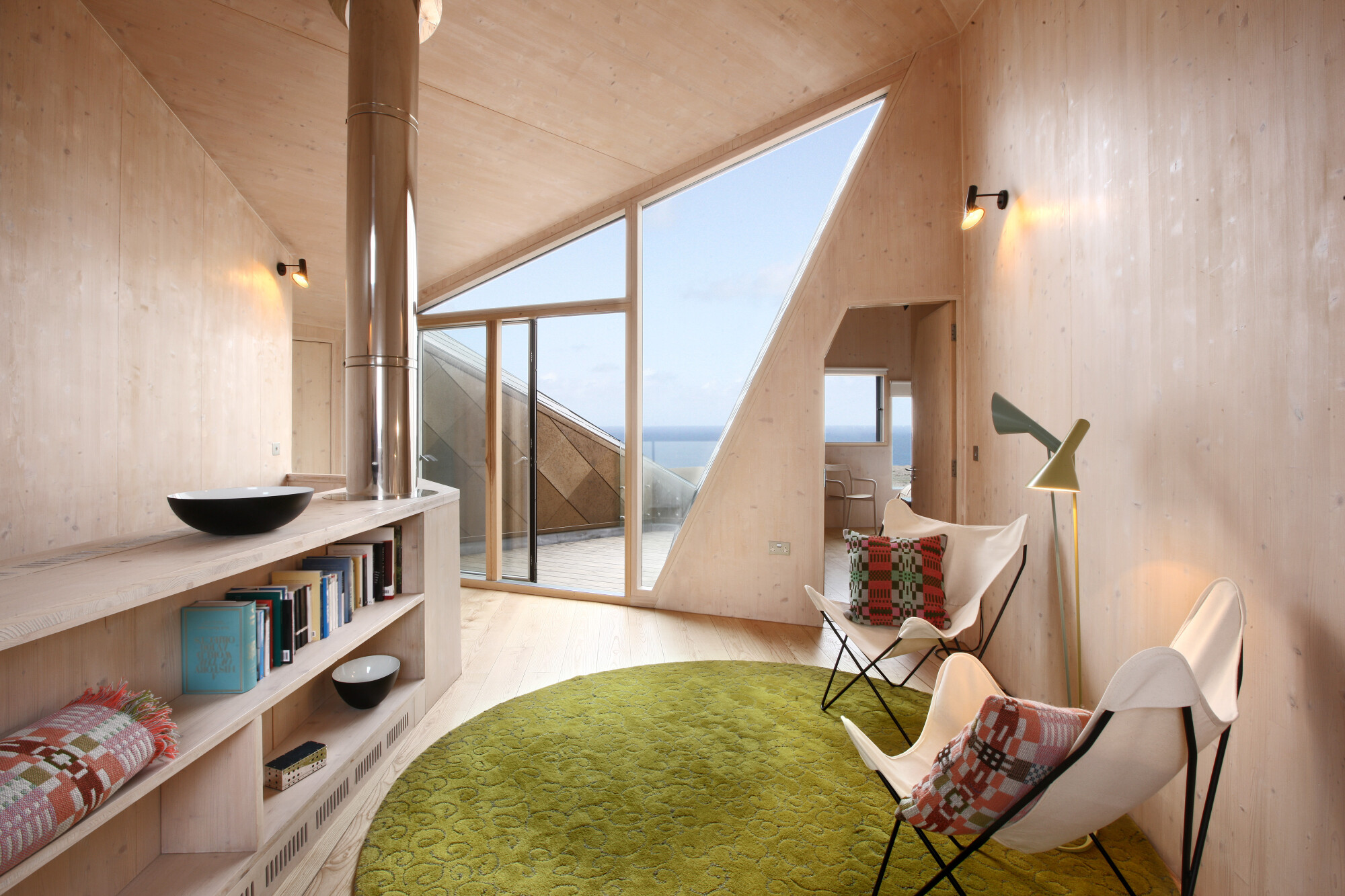

1382 original
1374 original

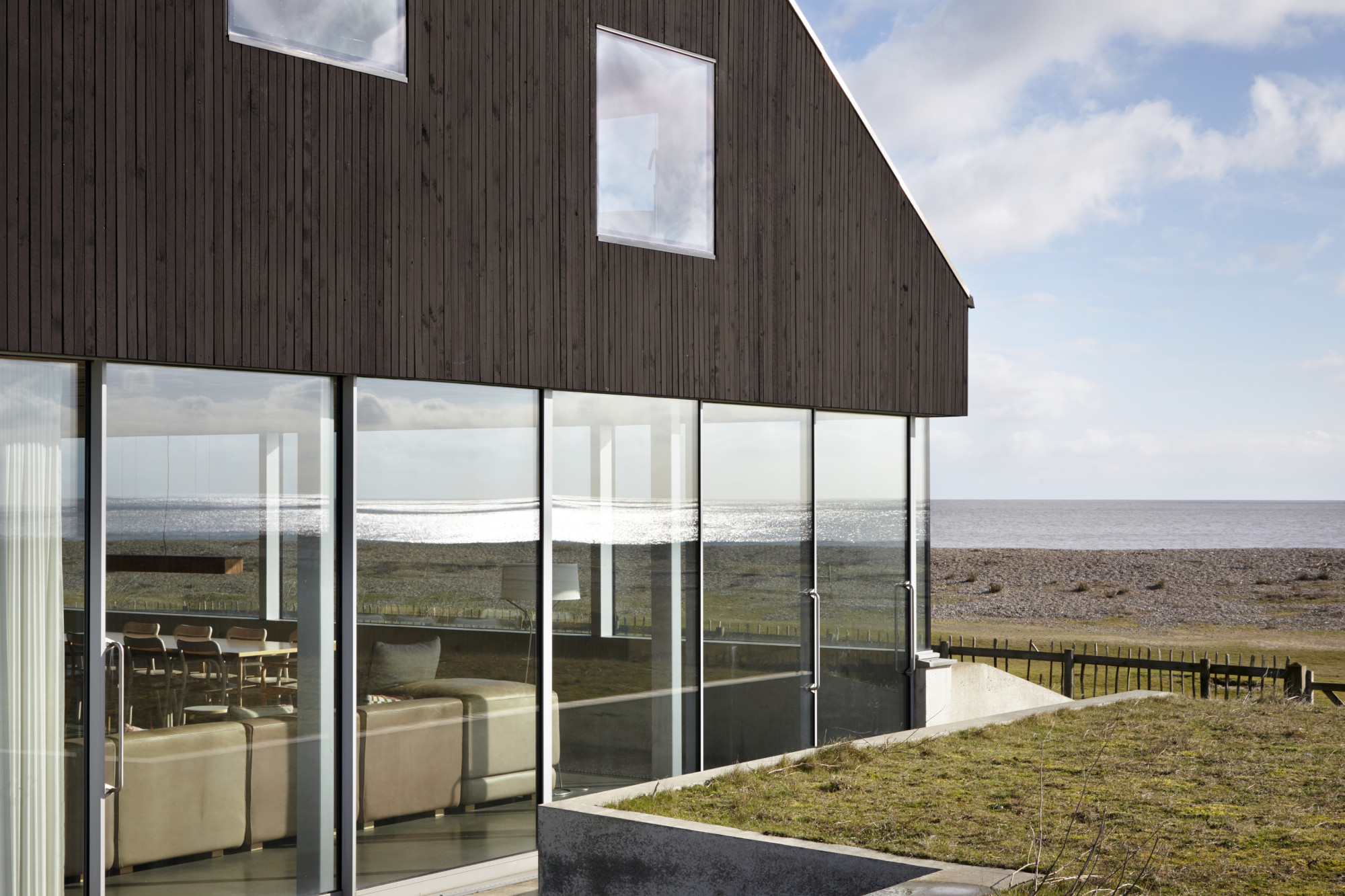

2063 original
2066 original

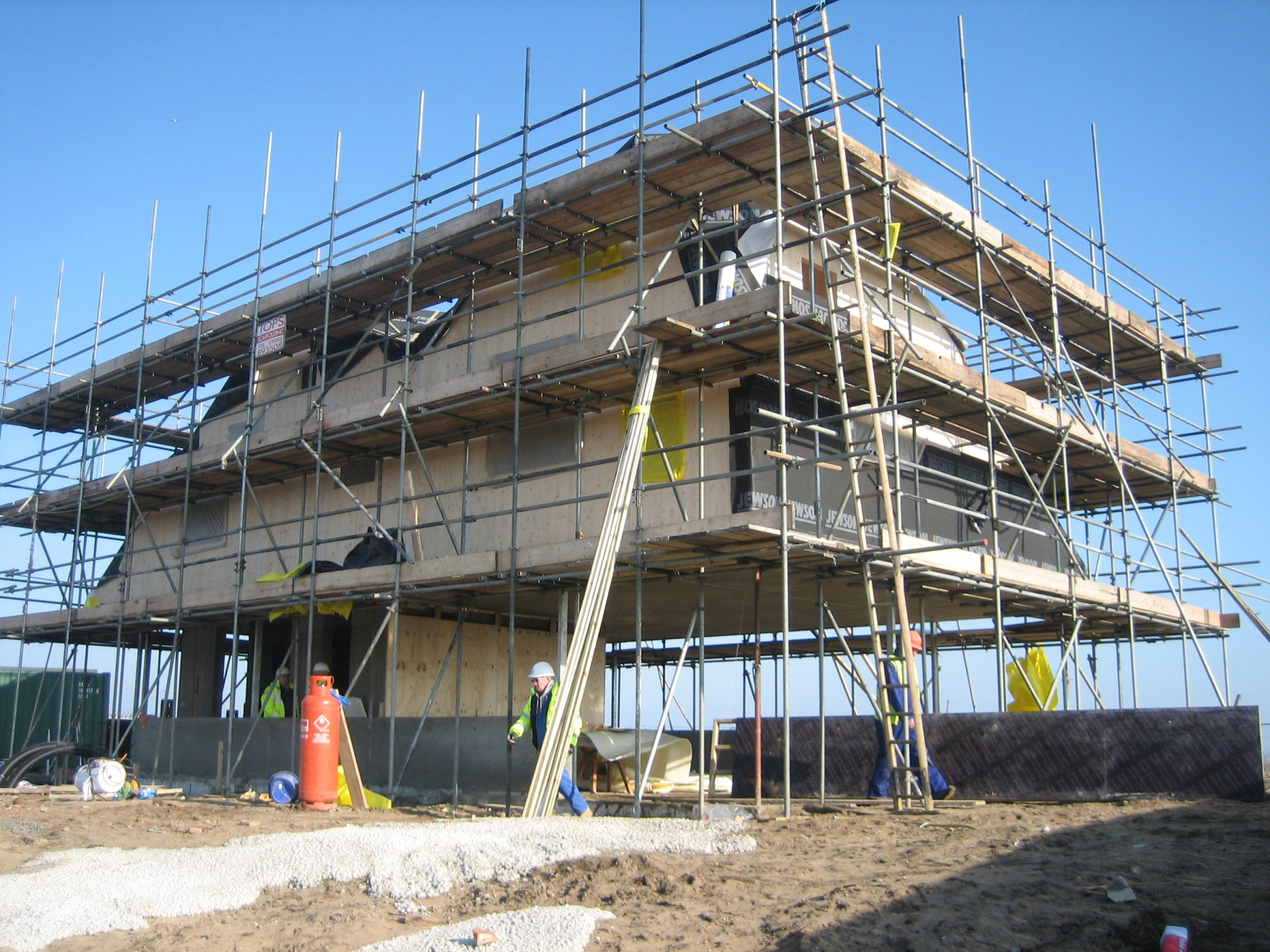

IMG 2174
Thorpeness, Suffolk, UK
Jarmund/Vigsnæs Architects, Mole Architects
Jack Hobhouse, John Rich
RIBA - Regional Awards, Winner
